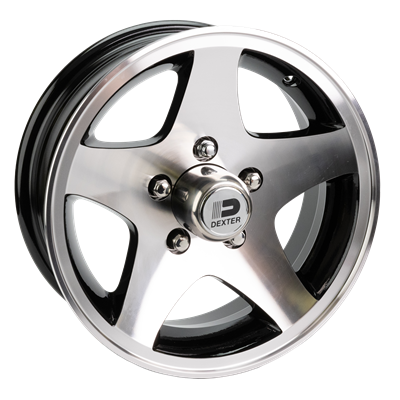

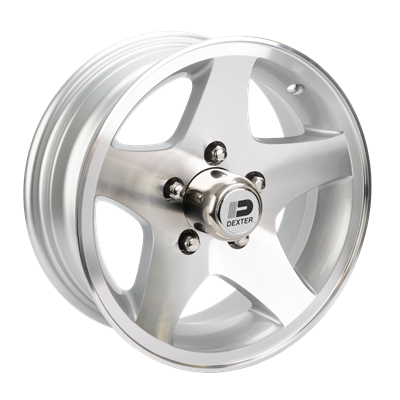

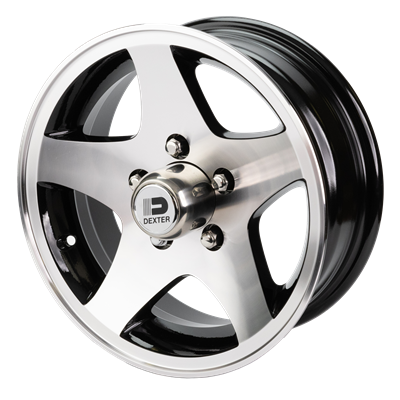

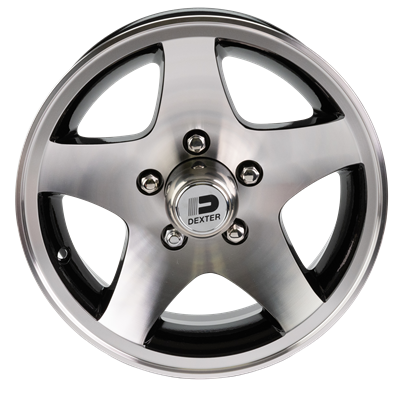

Transform your trailer's performance with the versatile Series 04 wheel, engineered for cargo, industrial utility, boat trailers, and RVs. Featuring a striking five-spoke, star-pattern design that can be customized with a variety of colors and finishes, ensuring it compliments your trailer. Choose the added protection of Extreme Environment Coating (EEC) to enhance durability against corrosion, backed by a reassuring two-year warranty. Manufactured in an ISO-certified facility, Dexter’s wheels set industry standards, delivering unparalleled quality and safety for your towable RV or custom trailer.
HISPEC P/N | SIZE | BOLT PATTERN | CENTER BORE | LOAD RATING | OFFSET | RIM CONTOUR | STUD SIZE | PILOT | VALVE STEM |
---|---|---|---|---|---|---|---|---|---|
424440 | 12x4 | 4x4.0 | 2.80” | 1220lbs | 0 | B | 1/2” | Lug Centric | 11.5mm |
424545 | 12x4 | 5x4.5 | 3.19” | 1520lbs | 0 | B | 1/2” | Lug Centric | 11.5mm |
435440 | 13x5 | 4x4.0 | 2.80" | 1480lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
435545 | 13x5 | 5x4.5 | 3.19" | 1660lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
445545 | 14x5.5 | 5x4.5 | 3.19" | 2040lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
455545 | 15x5 | 5x4.5 | 3.19” | 1820lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
456545 | 15x6 | 5x4.5 | 3.19" | 2150lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
456655 | 15x6 | 6x5.5 | 4.25" | 2860lbs | 0 | J | 1/2" | Lug Centric | 11.5mm |
467655 | 16x7 | 6x5.5 | 4.25" | 3520lbs | +5 | J | 1/2" | Lug Centric | 11.5mm |
467865 | 16x7 | 8x6.5 | 5.15" | 3200lbs | +5 | J | 1/2-9/16" | Lug Centric | 11.5mm |
466865HD | 16x6 | 8x6.5 | 4.90" | 3960lbs | -8 | J | 1/2-9/16" | Lug Centric | 15.8mm |
467865HD | 16x7 | 8x6.5 | 4.90" | 3960lbs | +5 | J | 1/2-9/16" | Lug Centric | 15.8mm |
